What gearbox is this?

[hainzy]

Hey guys this is the 5 sped gearbox in my HZ, Ive always thought it was an old supra 5 speed jobby but someone tried to tell me its a commodore box. Quite frankly I dont really know.. But I should shouldnt I!

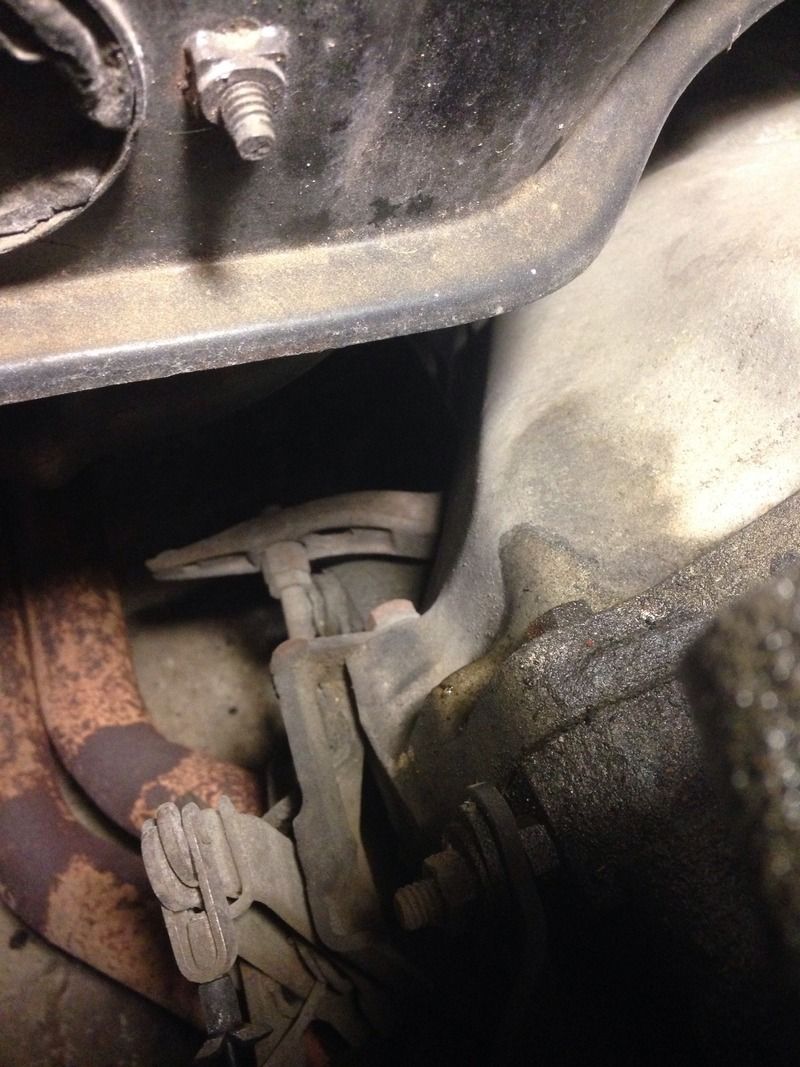

Its a 5 speed, and has the push clutch mechanism ala the awesome HZ rat trap setup....

[Innuendo]

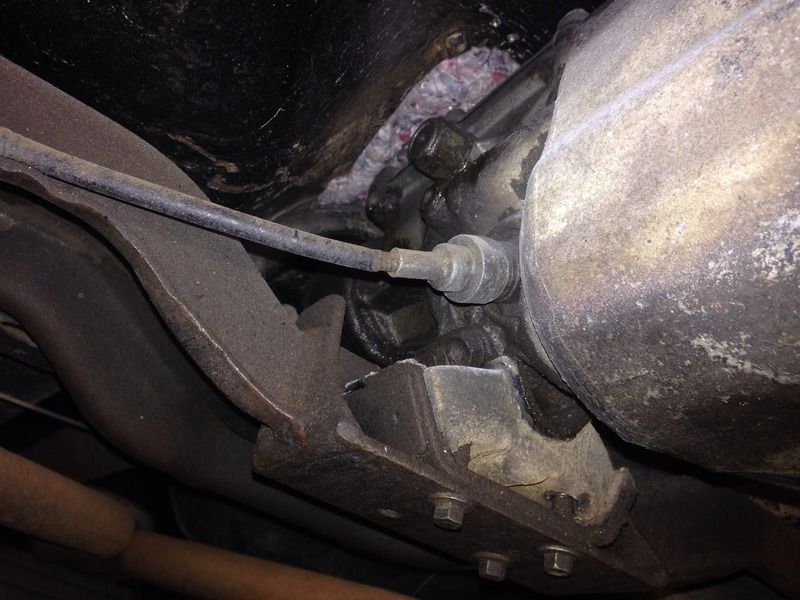

Bit hard to tell from those pictures but the gearbox mount looks very much Toyota.
Clutch set can be all Holden. The Bellhousing is aftermarket Dellow/CRS etc. So Hydraulic or Rat Trap can be set up.

[Valencia]

Got a supra box in my garage on the floor atm looks very close to that

[maxsandman]

could be a philipino box out of VH commy, has it got a big 5 on the side of it? Im presumining its a 6cylinder

[HZSM50]

could be a philipino box out of VH commy, has it got a big 5 on the side of it? Im presumining its a 6cylinder

Looks like a V8 to me.

[HK1837]

Looks like a W55 Hilux box to me (often called a Supra 5sp). The bellhousing will say what it is somewhere - looks like a Dellow bellhousing by the longer bottom bolts.

[Big Rob]

Celica alloy 5-speed. Plus I have a crossmember here out of a Torana that has been modified for a Celica box and it looks almost exactly the same.
I have what looks like the same box as yours with a Dellow V8 bellhousing and was told it was Celica.

[hainzy]

Thanks guys. Yes its a V8. Behind my 308.

That explains it then, because ive had this engine and box in 2 other HQ vans too before I put it in the HZ, and its always popped into the console in exactly the right spot.

I am actually contemplating putting my 304 EFI and T5 into the sandman (more about that later), and taking this celica 5 speed and 308 out and putting it in the Torana. Down the track...

Im not sure how the dellow housing bolts compare to the M20 setup but I was hoping I might be able to bolt the Torana V8 rat trap to this....

Big Rob I don't suppose you want to sell the modified torana crossmember do you?

Cheers.

[HK1837]

Torana V8 rat-trap relies on the bellhousing rear bolts to attach, yours looks like a Dellow so has longer bolts and will not fit without modification.

I just looked again and you can see where the HX style rat-trap has been modded to suit the longer bolts. That Holden setup should work in your Torana with the Torana pedal and cable but may not clear the extractors.

[hainzy]

Thanks Byron. It is something I might consider if I swap the engines around. I could always just leave the aussie 4 speed in though and just use the 308 minus the 5 speed. Wouldn't be the end of the world. Guess id do a trial fit with the engine out to save me the pain...
